LR-5100 Polyaspastic Resin

LR-5100 is a solvent-free, secondary amine-functional polyaspartic resin engineered for high-performance aliphatic coating systems. Its molecular structure is specifically designed to bind with -NCO groups, providing a versatile foundation for both rigid and elastomeric protective layers.

For technical formulators and procurement managers, LR-5100 represents a balance between low application viscosity and rapid return-to-service kinetics, making it a benchmark material for demanding industrial environments.

Technical Core: Key Performance Metrics

1. Accelerated Curing Kinetics

LR-5100 is characterized by its high reactivity. When cross-linked with HDI trimers, the system can achieve a surface-dry state within 20 minutes. This efficiency allows for optimized production lines and significantly reduced downtime in field applications.

2. Low-Temperature Structural Integrity

Thermal stability is a critical requirement for global infrastructure. LR-5100 based coatings remain crack-free at temperatures as low as -35°C. This ensures the film can withstand extreme day-night temperature fluctuations and thermal expansion/contraction of the substrate without delamination.

3. Industrial-Grade Weathering (4,000 Hours QUVA)

Durability is verified through rigorous testing. After 4,000 hours of QUVA exposure, LR-5100 maintains over 95% of its original physical properties. It effectively resists yellowing, chalking, and degradation, even under intense UV radiation.

4. Precision Viscosity Control

With a viscosity range of 300-800 mPa·s (@ 25°C), this polyaspartic resin enables the formulation of 100% solid-content coatings that maintain excellent flow and leveling without the need for additional volatile solvents.

Product Specifications

Every batch of LR-5100 is synthesized under standardized conditions to ensure consistent reactivity and physical properties:

Formulation Flexibility and Engineering Value

The engineering versatility of LR-5100 polyaspartic resin allows technical teams to tailor the coating's final mechanical profile by selecting specific curing agents or blending components:

Rigid Systems (2H Hardness): By blending with rigid hardeners or HDI trimers/dimers, LR-5100 forms high-build films with a 2H pencil hardness, offering maximum protection against high-frequency mechanical impact and surface scratching.

Elastomeric Solutions: When combined with flexible curing agents, it produces elastomeric materials with high elongation at break, providing excellent vibration damping and crack-bridging capabilities.

Adjustable Induction Time: LR-5100 can be used as a standalone resin or blended with other models such as LR-1520 or LR-1420. This allows formulators to precisely control the activation period (pot life) and drying rate based on regional humidity and temperature conditions.

Targeted Industrial Applications

Based on its rapid-curing and high-adhesion characteristics, LR-5100 is ideally suited for the following sectors:

1. Industrial Anti-Corrosion: Designed as a primer or topcoat for agricultural machinery, heavy engineering equipment, and large-scale steel structures.

2. High-End Finishes: Ideal for automotive topcoats and premium wood coatings where film fullness, high gloss, and hardness are the primary quality indicators.

3. Advanced Flooring Systems: A reliable solution for factory floors, residential waterproof coatings, and parking lot flooring requiring high-load resistance and rapid return-to-service.

4. Renewable Energy (Wind Power): Specifically utilized for wind power generation tower surfaces to ensure long-term UV protection and low maintenance in remote environments.

Packaging and Storage

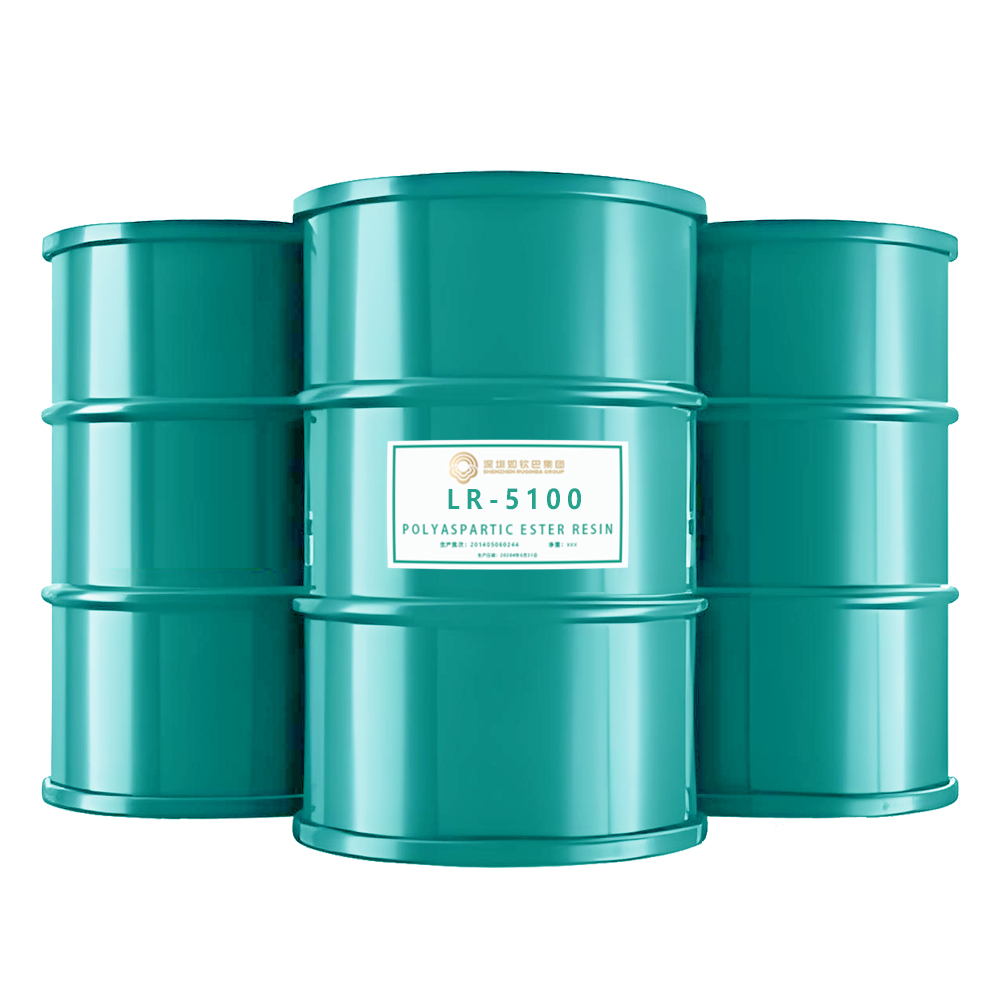

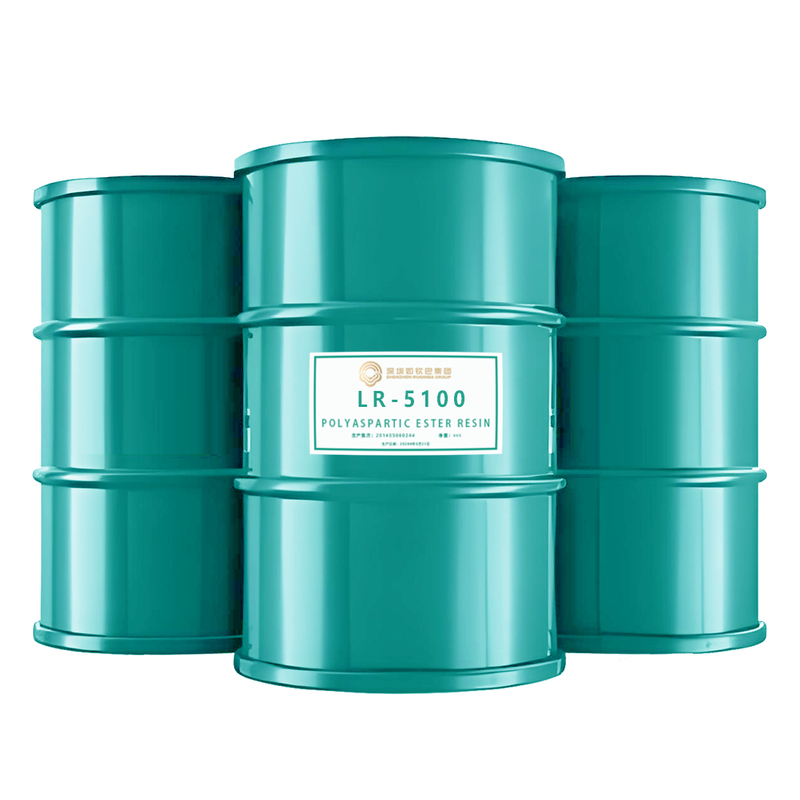

• Packaging Unit: Standardized 200 KG steel drums.

• Shelf Life: 12 months when stored in original, unopened containers at temperatures ≤30°C.

• Safety Notice: This product is flammable. Store in a cool, dry, and well-ventilated area away from heat sources and open flames.
