In the world of epoxy resin chemistry, the curing agent is the "soul" of the formulation. It defines the performance ceiling of the final material. In applications that must withstand high voltage, mechanical stress, or harsh environments, medium-to-high temperature curing agents play a critical role.
Unlike room-temperature hardeners, these agents are not "reactive" by default. They require precise thermal activation to trigger a cross-linking reaction with the epoxy groups. This process builds a dense, stable three-dimensional network, granting the material its superior properties.
The family of curing agents is vast. Depending on their chemical structure and application focus, they can be divided into several technical camps:
Type | Typical Representative | Key Performance Characteristics | Primary Applications |
Aromatic Amines | MPDA, DDS | Extreme Heat Resistance: High Tg and excellent chemical resistance. However, they require high curing temperatures and have higher viscosity. | Aerospace composites, high-performance structural adhesives. |
Anhydrides | MTHPA, MHHPA, DDSA | King of Balanced Performance: Excellent electrical insulation, high mechanical strength, and low internal stress. Easy to process. | Dry-type transformers, electrical potting, LED packaging, pultrusion. |
Phenolic Resins | Novolac | Flame Retardancy: Fast curing speed with outstanding heat and chemical resistance. | Friction materials, refractories, Epoxy Molding Compounds (EMC). |
Latent Cyanamides | DICY | One-Component Expert: Long shelf life at room temperature; cures rapidly at high heat (~180°C). | Powder coatings, one-component adhesives, carbon fiber prepregs. |
Imidazoles | EMI-24 | High-Efficiency Catalyst: Can act as a standalone hardener or an accelerator for anhydrides to lower activation energy. | Electronic packaging, composites (used as an accelerator). |
Among these, Anhydride curing agents are the backbone of high-end power and electronics manufacturing due to their balance of electrical properties and ease of use. Within the anhydride family, one member stands out for its specialized properties: Dodecenyl Succinic Anhydride (DDSA).

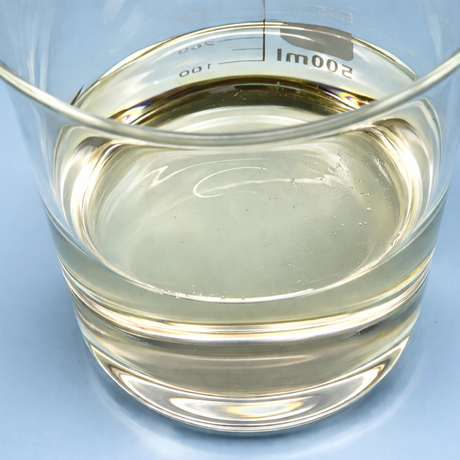

Dodecenyl Succinic Anhydride (DDSA) is a pale yellow, oily liquid at room temperature. Its molecular structure is a masterpiece of industrial design: one end features a highly reactive anhydride ring for cross-linking, while the other end is a long C12 aliphatic alkenyl chain. This "long tail" is the secret behind DDSA’s unique performance.
Superior Internal Toughening and Low Internal Stress
Unlike "external toughening" methods (such as adding rubber particles), DDSA integrates its long aliphatic chain directly into the epoxy network via chemical bonding. This long chain acts as a microscopic internal cushion, effectively absorbing thermal expansion stress and reducing curing shrinkage. This is critical for preventing cracks or delamination in large castings and precision components.
Outstanding Electrical Insulation and Low Dielectric Loss
The cured DDSA-epoxy structure is remarkably uniform and hydrophobic. Its dielectric constant and loss factor remain extremely stable across a wide range of frequencies and temperatures, effectively suppressing corona discharge in high-voltage environments.
Mild Exothermic Profile (Low Heat Release)
Due to its high molecular weight, DDSA has a lower functional group density per unit mass. This results in a much smoother exothermic peak during curing. In large-volume castings (such as heavy transformer coils), this prevents "internal scorching" or thermal cracking caused by excessive internal heat buildup.
Exceptional Hydrophobicity and Weather Resistance
The long alkyl chain provides a natural moisture barrier. This gives the cured system excellent resistance to hydrolysis and moisture, significantly extending the service life of equipment used in outdoor or humid environments.
Ultra-High Voltage (UHV) Insulation: Coil casting and impregnation for dry-type transformers, reactors, and mutual inductors. In these fields, DDSA is the primary defense against thermal shock.
Automotive and Military Electronics: Used to encapsulate sensors and controllers that must endure extreme vibrations and temperature fluctuations (-40°C to 150°C).
High-Performance Composites: Manufacturing pressure vessels, blades, or sporting goods that require high fatigue resistance and toughness.
Flexible Adhesives: Providing a buffered bonding layer for substrates with significantly different coefficients of thermal expansion, such as metal-to-ceramics.
In industrial practice, DDSA is rarely used alone. Because its long-chain structure reduces the density of polar groups in the network, the Glass Transition Temperature (Tg) of a pure DDSA-cured system is relatively low (typically 60-90°C).
Consequently, the "Advanced Application" of DDSA involves blending it with rigid anhydrides:
Material engineers frequently blend DDSA with Methyl Tetrahydrophthalic Anhydride (MTHPA) or Methyl Hexahydrophthalic Anhydride (MHHPA).
By adding 10% to 30% DDSA to the formula, one can significantly improve the flexibility and crack resistance of the system without substantially sacrificing the heat distortion temperature.
This blending technique is akin to adding rebar to concrete, achieving a perfect "rigidity-toughness balance."
Dodecenyl Succinic Anhydride (DDSA) perfectly illustrates the art of balance in polymer design. It trades a degree of absolute heat resistance for unparalleled toughness, electrical stability, and weather resistance.
In the specialized niche of electrical insulation and high-end electronic packaging, it remains an indispensable leader. Understanding the "personality" of each curing agent allows engineers to design the perfect "soul" for their materials—this is precisely what makes epoxy technology so fascinating and sophisticated.
